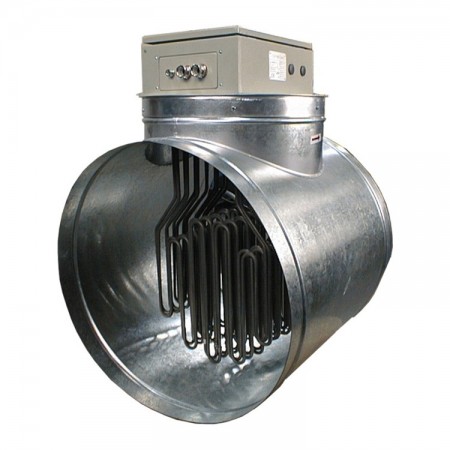

Three-phase Electric Circular Duct Heater BTT
Product Description
Details
- Class I electrical heater
- Steel painted connections box with degree protection against moisture IP44
- Cylindrical pipe galvanised steel sheet. On request, in stainless steel
- PG for power supply and control cables.
- From 1 to 6 tubular elements in stainless steel tube AISI 321 or AISI 304L of Ø 6.4mm for the single-phase models and Ø8 mm for the three-phase models.
- Built-in safety thermostat of 85ºC. On request we can supply a safety thermostat of 110ºC.
- 1 or 2 power stages according to models, in both single-phase and three-phase groups.
- Heating elements in unitary voltage ~230V in order to make the different connection options easier.
- High resistance to impacts and splashes of water.
Model
Power (Watts)
Duct diameter (mm)
Weight (Kg)
BTT160-1,5
250-1500
160
3,5
BTT200-3
500-3000
200
5,1
BTT250-4,5
750-4500
250
6,1
BTT315-6
2000-6000
315
6,7
BTT315-9
1500-9000
315
7,6
BTT355-9
1500-9000
160
7,9
BTT355-12
4000-12000
355
8,2
BTT400-15
2500-15000
355
9,8
Additional Information
Additional Information
| Name | Three-phase Electric Circular Duct Heater BTT |
|---|---|
| Estimated delivery | 1-2 weeks |
| Connection voltage | 400V |
| Manufacturer | Electricfor |
