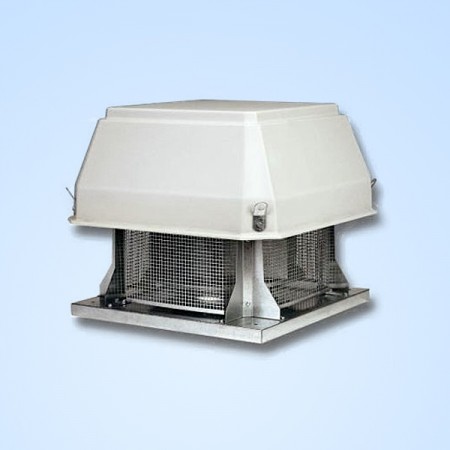

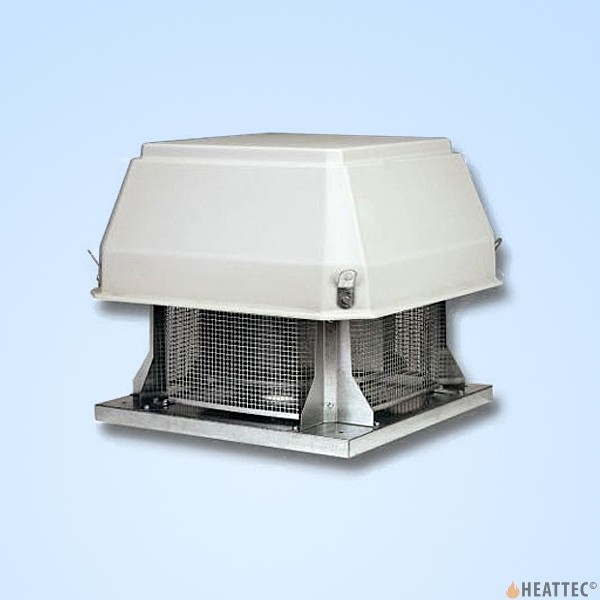

The fans of this series are suitable for sucking clean or slightly dusty air and they are mainly used to ensure the air change in civil and industrial buildings, bathrooms, kitchens, workshops, garages, gyms and in general when it is requested to convoy air through air ducts. In the standard execution, the temperature of the sucked fluid must not exceed 40°C.

TECHNICAL FEATURES:

Base made in galvanized steel sheet, cowl made in ABS plastic materials, Sama Centrifugal impeller with reversed blades made in galvanized steel sheet, net against birds, the air discharge is horizontal.

OPERATING RANGE:

Pt = 8 - 60 mm. H2O - Q = 300 - 18.000 mc/h

EXECUTIONS:

The fans of this series are equipped with three-phase asynchronous electric motors according to UNEL-MEC standards coupled directly to the impeller. On request single-phase electric motor till size 90 can be supplied.

SPECIAL EXECUTIONS:

For all the fans of this range special executions may be possible, like the costruction for high temperatures and the ATEX execution for the zones 1-21 or 2-22.
