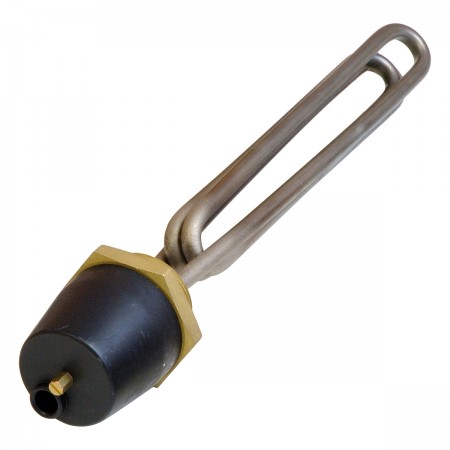

Immersion Heater Triple Loop U-Shaped
Product Description
Details
- Tubular element of nickel-plated copper or stainless steel AISI 321 of Ø8 mm
- BSP threaded plug of stamped brass
- Polyester with fiberglass or bichromated zinc-plated steel protection hood, with degree protection against moisture IP-40.
- Optionally, all the models with BSP thread of 1 1/2”, 2” and 2 1/2” can be supplied with aluminum connection box IP66.
- Welded with silver alloy for stainless steel tube and with copper alloy for copper tube.
- Standard voltage ~230 V
- By request, special heating elements can be made according to your specifications:
- Material tube: AISI 316L, Incoloy®-800, Incoloy®-825 and Titanium
- Stainless steel or titanium BSP threaded plugs.
Usual applications
- Steam boilers
- Water baths
- Warming of diesel fuel
- Water heaters
- Oil chambers
- Distillation
- Cleaning
- Dyeing
- Liquid convection heating radiators
- Towel dryers
- Degreasing
- Endothermal or exothermal reactions requiring it
- Heating by circulation of liquids
- Fish farms
- Boiling vats
- Cooking vats
- Chemical industries
- Electromedicine
Specifications
| Type | L (mm) | BSP plug | Power (W) | W/cm² | Tube material | Weight (kg) |
| 290-T001 | 150 | 1,1/4″ | 750 | 5 | Inox | 0,36 |
| 290-T003 | 200 | 1,1/4″ | 1000 | 4,4 | Inox | 0,24 |
| 290-T005 | 250 | 1,1/4″ | 1500 | 5,7 | Inox | 0,49 |
| 290-T007 | 350 | 1,1/4″ | 2000 | 4,5 | Inox | 0,62 |
| 290-T108 | 250 | 2″ | 2000 | 4,9 | Inox | 0,86 |
| 290-T009 | 450 | 1,1/4″ | 2500 | 4,2 | Inox | 0,74 |
| 290-T011 | 550 | 1,1/4″ | 3000 | 4 | Inox | 0,88 |
Additional Information
Additional Information
| Name | Immersion Heater Triple Loop U-Shaped |
|---|---|
| Estimated delivery | 1-2 weeks |
| Manufacturer | Electricfor |
