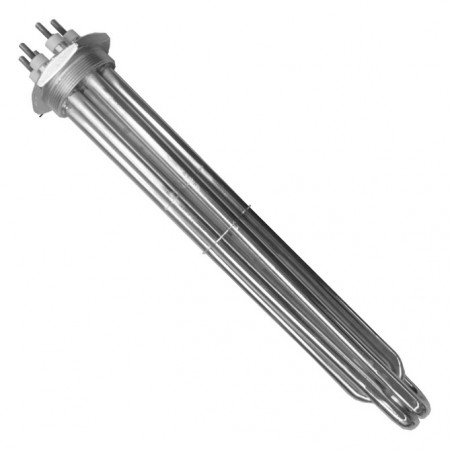

Threaded brass M77x2 or 2’’1/2 BSP plug with 3 nickeled copper u-shaped Ø16 elements, comes with sheath for thermostat

General characteristics

• Tubular element of nickel-plated copper, stainless steel AISI 321, stainless steel AISI 316l or steel
• Threaded plug of stamped brass or stainless steel AISI 304
• All the models are provided with sheath for thermostat of the same material as the tube, with the exception of models CR77CIA.
• Adjustable aluminium connection box, with degree protection against moisture IP66 according to IEC-60529. Supplied with plastic pouch containing all connection, interlock and sealing accessories

(*) Note: If you require heating elements with threaded Gas plug, change the corresponding code:

• 45 for 112
• 77 for 212

Example: Threaded brass 1" 1/2 Gas plug with 3 nickeled copper U-Shaped elements of Ø 8mm, 2000 W
Code: CR112CN0020
