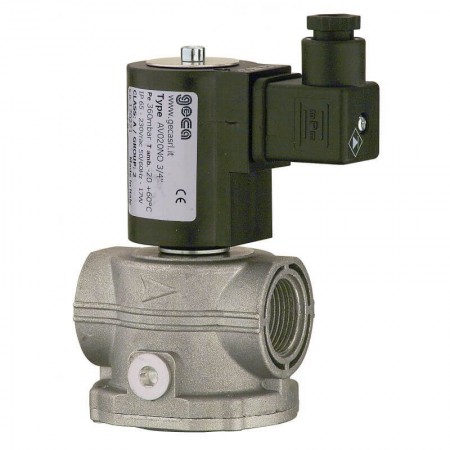

Normally open solenoid valve is an automatic pressure relief valve for gas burners and gas appliances. The normally open gas solenoid valve is a safety device which quickly intercepts gas flow when the pressure it is monitoring reaches a pre-set limit due to any anomaly in the system

Specifications:

• Max. operating pressure (Pmax): 360 mbar
• Inlet connection - outlet DN25 Thread gas - ISO 228
• Sliding Aluminium flange PN10
• Opening time: <1 second
• Closing time: <1 second
• Max number of operations 20 per minute
• Incorporated AISI 303 steel mesh filter on request
• Supply voltage 230V (-15%+10%) 50-60Hz
• Power: 15 VA - Coils to class F, copper wire class H
• Only use non-aggressive gases - Family 1, 2, 3 and air
• Test point 3 connections
• Screw ¼" NPT
• Working Temperature - 20 °C - 60 °C
• Approval: EN161 / PED
• Protection degree IP65

Materials:

• Complete Body Die
• Cast Aluminium Gd
• AlSi12Cu
• EN AB 46100
