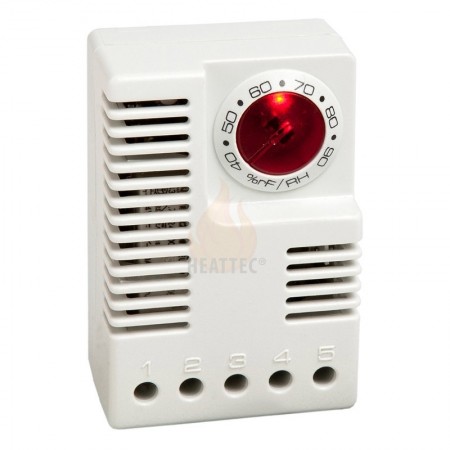

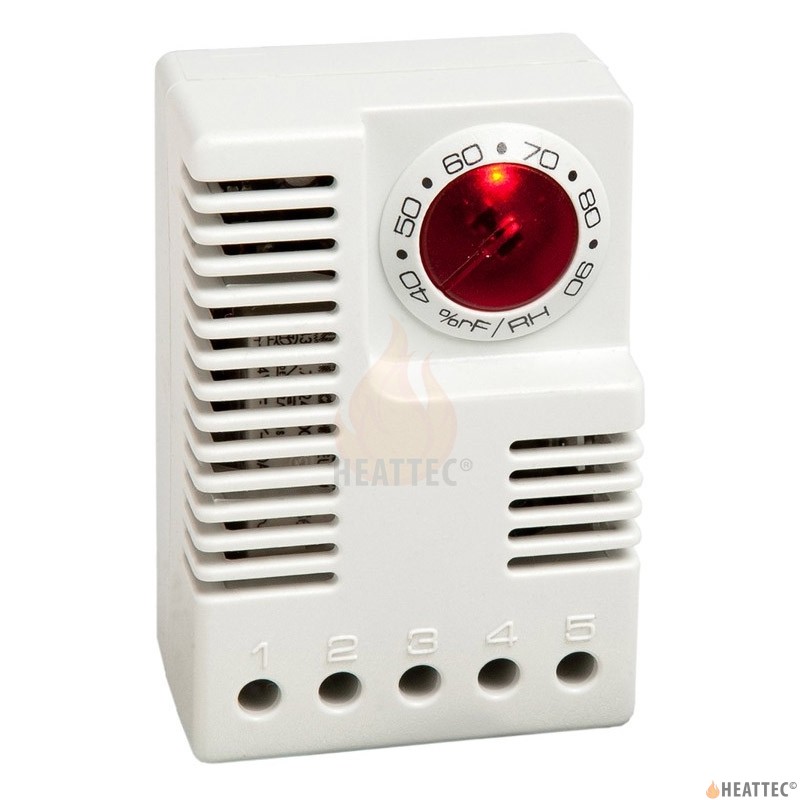

Electronic Hygrostat EFR01246
Product Description
Details
General characteristics
- Hysteresis (Humidity): 5% RH (±1 RH tolerance) at 25 °C
- Reaction time: Approx. 5 sec.
- Contact class: Inverter contact
- Connection capacity:
240 Vac,8 (1.6) A
120 Vac.8 (1.6) A
24 V dc, 4 A - Connection: 5 pole flanges, even max 0.5 Nm
- Housing: plastic according to UL94 V-0, light grey
- Fixing: clip for 35mm DIN rail, EN 50022
- Mounting position: vertical
- Protection class: IP 20
Additional Information
Additional Information
| Name | Electronic Hygrostat EFR01246 |
|---|---|
| GTIN / EAN | 5707328159483 |
| Estimated delivery | 1-2 weeks |
| Manufacturer | Stego Elektrotechnik GmbH |
