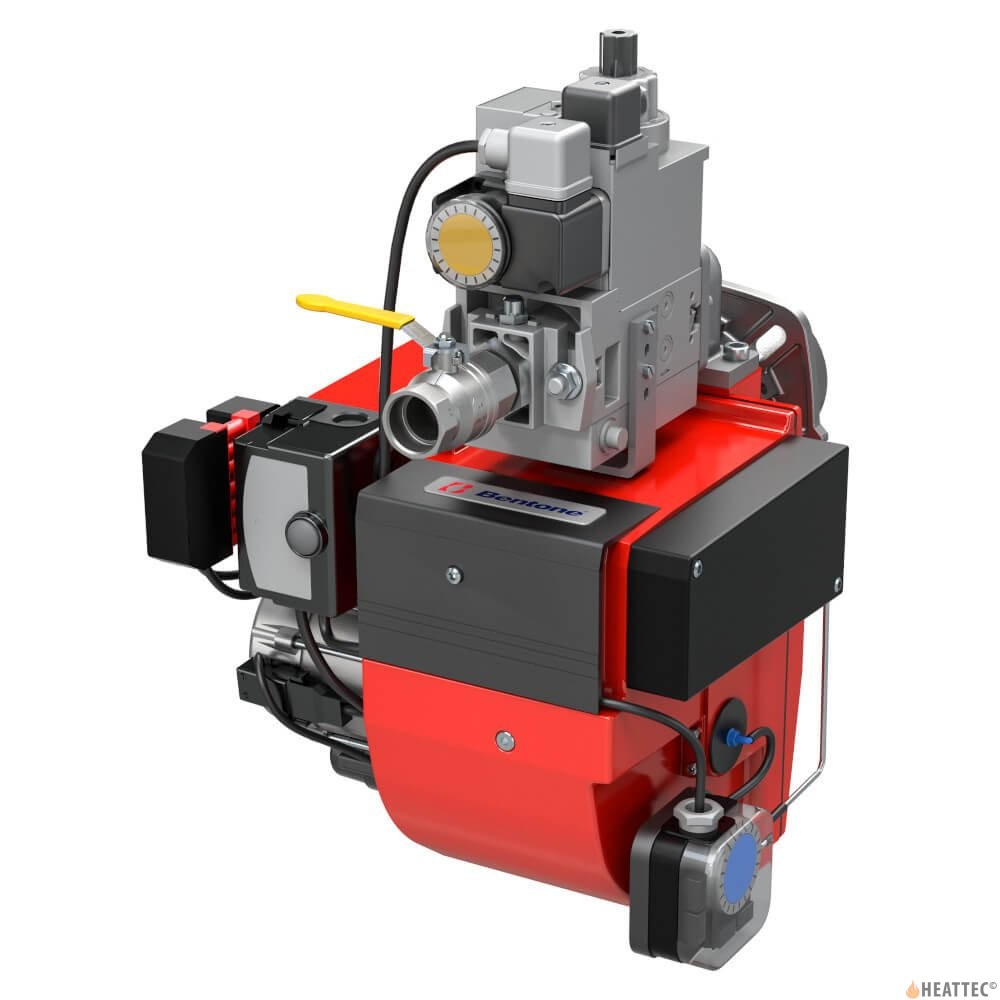

Gas Burner STG120/2 16-51 kW MBDLE403 B01
Product Description
Details
The STG120/2 type comes in two models, with a capacity range of 14,5–51 kW. Available for natural gas, LPG and biogas.
Ducted or conventional air inlet. Suitable for high resistance/condensing boilers. Designed for 1- stage or 2- stage operations. Industry standard components are used. A soft pulsation free start. Wide adjustment range and high efficency with constant combustion values. High flexibility with reference to different options.
When biogas is used, Heattec shall always be contacted.
| Model | Partcode | Capacity kW | Gas | Multibloc | Ball valve | P inlet |
| STG120/2 | 250000425601 | 16-51 | LPG+ | GB-LD 055 | 1/2" | 20 |
| 12-47 | Natural | |||||
| STG120.2 | 250000325601 | 16,0 - 51,0 | LPG | MBDLE403 | 1/2" | 20 |
| 14,5-50 | Natural | |||||
Additional Information
Additional Information
| Name | Gas Burner STG120/2 16-51 kW MBDLE403 B01 |
|---|---|
| Manufacturer | Bentone |
| Output / Capacity | 16-51 kW |
| Connection voltage | 230V |
| Type of gas | Natural / LPG |
| Multibloc | MBDLE403 B01 |
| Burner controls | LME11 |
| Ball valve | 1/2" |
| Inlet pressure (mbar) | 20 |
| Estimated delivery | 2-3 weeks |
| Country of Manufacture | Sweden |
